Product Features

• Pocket size and light weight
• Two 72MS/s analog channels (Channel A, B), plus two digital channels (Channel C, D)
• Signal Generator (10Hz to 1Mhz)
• Vertical solution: 8 bit, Sampling rate: 1kSa/s - 72MSa/S
• Power: Lipo battery

Product Details

• Product Dimensions: 7.5 x 4.5 x 2 inches ; 1 pounds
• Shipping Weight: 1 pounds

Product Description

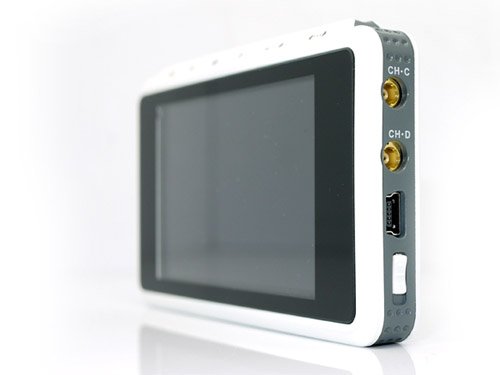

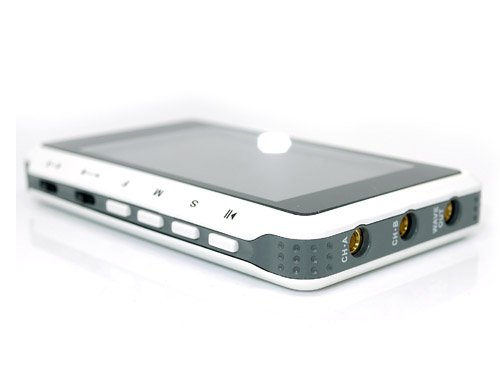

DSO Quad is a pocket size 4 channel digital oscilloscope for common electronic engineering tasks. It's based on ARM cortex M3 (STM32F103VCT6) 32 bits platform, providing 72MS/s sampling rate with integrated FPGA and high speed ADC. Internal 2MB USB disk could be used to store waveform, user application and upgrade firmware.
